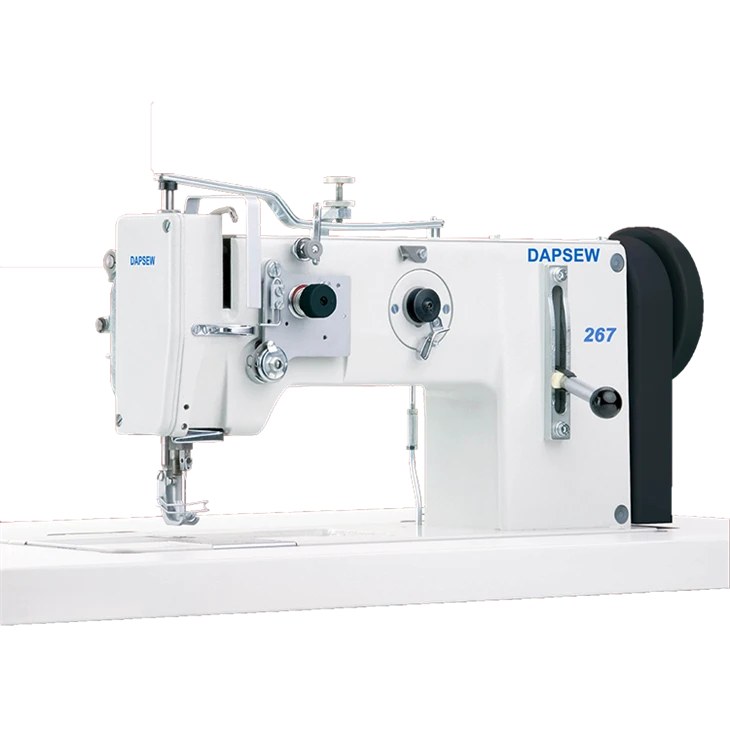

DAPSEW DAF-267 Compound Feed Lockstitch Sewing Machine Series

Product Overview

The DAPSEW DAF-267 Series is a flat bed compound feed lockstitch sewing machine range available in single-needle, double-needle and four-needle configurations.

Designed for medium- to heavy-duty industrial sewing applications, the series is suitable for luggage, cushions, tents, sofas, bags, gloves and other products requiring controlled material feeding.

Different model configurations are available to meet specific stitch arrangements and production requirements.

Key Features

Compound Feed System: Helps feed multiple layers of material during sewing.

Multiple Needle Configurations: Single-needle, double-needle and four-needle versions are listed in the series.

Alternating Presser Foot Movement: 5 mm alternating foot stroke.

Stitch Length Options: Standard 6 mm, with an 8 mm version indicated in the model coding.

Direct Drive Option: Integrated direct drive motor and control system available.

Pneumatic Functions: Optional pneumatic presser foot lifting and reverse sewing.

Automatic Thread Trimming: Available with the specified TRAP configuration.

Typical Applications

Bags and Luggage

Sewing bag panels, luggage components and reinforced seams.

Furniture Upholstery

Sewing sofa covers, cushions and other upholstery components.

Tents and Outdoor Products

Joining suitable tent fabrics and industrial textile panels.

Gloves and Industrial Products

Sewing selected glove components and other industrial textile assemblies.

Model Configurations

DAF-267-373 - Single Needle

Single-needle compound feed lockstitch sewing machine for general industrial sewing applications.

DAF-267-273 - Double Needle

Double-needle compound feed lockstitch sewing machine for parallel stitching operations.

Standard needle spacing is 6 mm, with 8 mm, 10 mm and 12 mm options indicated in the catalogue.

DAF-267D-4 - Four Needle

Four-needle compound feed lockstitch sewing machine for selected multi-row stitching applications.

Optional Functions

The catalogue identifies the following configurations:

Standard: Under-table motor and control system

D: Integrated direct drive motor and control system

AP: Pneumatic presser foot lifting

RAP: Pneumatic reverse sewing and presser foot lifting

TRAP: Automatic thread trimming, pneumatic reverse sewing and presser foot lifting

Availability should be confirmed for the specific machine subclass.

Specification

Frequently Asked Questions

What is the DAPSEW DAF-267 used for?

The DAF-267 Series is used for industrial sewing applications including bags, luggage, cushions, tents, sofas and gloves.

Is the DAF-267 available with two needles?

Yes. The DAF-267-273 is the double-needle version. The catalogue lists 6 mm standard needle spacing and optional 8 mm, 10 mm and 12 mm spacings.

Does the DAF-267 support automatic functions?

Selected configurations offer pneumatic presser foot lifting, pneumatic reverse sewing and automatic thread trimming.

What is the maximum sewing speed?

The supplied DAPSEW catalogue lists a maximum sewing speed of 2,000 stitches per minute for the three specified model versions.

Can I order a direct drive version?

Yes. The catalogue identifies an integrated direct drive configuration using the D designation.

Request a Quotation

DAPSEW supplies industrial sewing machines for international buyers and provides application-based machine selection assistance.

Contact us with your sewing material, required needle configuration, sewing operation, quantity and destination country for model selection and an export quotation.
