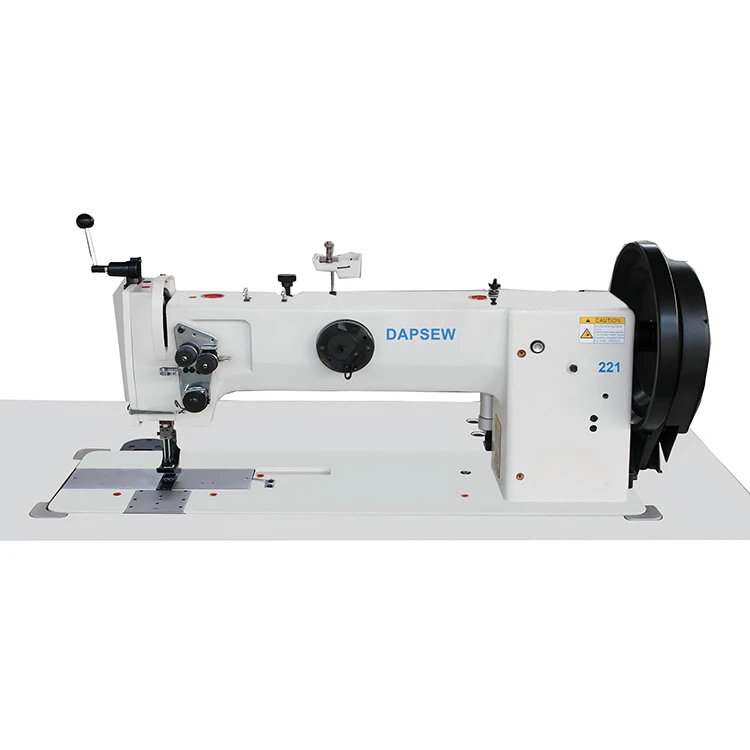

DAF-221-L18 Long-Arm Compound Feed Heavy Duty Sewing Machine
The TOPEAGLE DAF-221-L18 is a long-arm compound feed heavy duty lockstitch sewing machine available in single-needle and twin-needle configurations. Designed for sewing demanding materials such as leather, synthetic leather, canvas, coated fabrics and upholstery materials, the machine combines bottom feed, needle feed and alternating presser foot feed to support consistent material feeding and stitch formation. Its extended working space helps operators handle bulky workpieces used in furniture upholstery, automotive interiors, marine upholstery, tarpaulins and other heavy-duty sewing applications. The DAF-221-L18 is suitable for industrial users looking for a long-arm sewing machine for thick materials and large sewing projects.
DAF-221-L18 Long-Arm Compound Feed Heavy Duty Sewing Machine
Product Overview
The TOPEAGLE DAF-221-L18 is an industrial long-arm lockstitch sewing machine designed for heavy-duty sewing applications involving thick materials, multiple layers and bulky workpieces.
The machine uses a compound feed system combining bottom feed, needle feed and alternating presser foot feed. This feeding arrangement helps maintain coordinated material movement during sewing and supports consistent stitch formation on demanding materials.
The DAF-221-L18 series is available in single-needle and twin-needle configurations to accommodate different seam requirements.
Key Features
Long-arm working space
The long-arm design provides additional room for handling bulky workpieces, making it suitable for large upholstery panels and other demanding sewing tasks.
Compound feed mechanism
Bottom feed, needle feed and alternating presser foot feed work together to help feed thick or layered materials consistently.
Single-needle and twin-needle options
Different configurations are available for different stitching requirements. The appropriate needle arrangement should be selected according to the required seam and machine subclass.
Heavy-duty lockstitch sewing
The machine is designed for industrial sewing applications involving leather, synthetic leather, canvas, coated fabrics and upholstery materials.
Typical Applications
Leather products and leather upholstery
Sofa and furniture upholstery
Automotive interior materials
Marine upholstery and boat covers
Canvas, tarpaulins and awnings
Truck covers and other heavy-duty sewn products
Coated, laminated and rubberized fabrics
Available Configurations
The DAF-221-L18 catalogue identifies two configurations:
DAF-221-373-L18: Single-needle configuration
DAF-221-273-L18: Twin-needle configuration
Please confirm the required needle configuration, needle gauge and sewing application when requesting a quotation.
Technical Specifications
|
Parameter |
DAF-221-373-L18 |
DAF-221-273-L18 |
|---|---|---|
|
Needle configuration |
Single needle |
Twin needle |
|
Needle |
Lockstitch, Type 301 |
Lockstitch, Type 301 |
|
Stitch lenth (mm) |
10 |
10 |
| Needle gauge (mm) | --- | 6-60 |
|
Maximum sewing speed (sti/min) |
1,200 |
1,000 |
|
Material code |
MS, S |
MS, S |
|
Nominal voltage |
220 V, 50/60 Hz |
220 V, 50/60 Hz |
|
Power consumption |
1 kVA (max.) |
1 kVA (max.) |
|
Sewing head weight (kg) |
79 |
79 |
|
Air consumption (NL) |
1.0 |
1.0 |
|
Air pressure (bar) |
6.0 |
6.0 |
|
Machine length (mm) |
1,600 |
1,600 |
|
Machine width (mm) |
580 |
580 |
|
Machine height (mm) |
1,600 |
1,600 |
|
Working space (C × D) (mm) |
460 × 160 |
460 × 160 |
|
Presser foot lift (A / B) (mm) |
12 / 20 |
12 / 20 |
|
Needle system |
7 × 23 |
7 × 23 |
|
Thread size (Nm) |
170–200 |
170–200 |
|
Synthetic thread |
8/3 |
8/3 |
|
Core thread |
10/3 |
10/3 |
|
Braided thread |
0.8–1.0 |
0.8–1.0 |
Frequently Asked Questions
1. What is the TOPEAGLE DAF-221-L18 sewing machine used for?
The DAF-221-L18 is a long-arm compound feed lockstitch sewing machine designed for heavy-duty applications. Typical uses include leather upholstery, furniture manufacturing, automotive interiors, marine upholstery, canvas products and other demanding sewing operations.
2. Is the DAF-221-L18 available in single-needle and twin-needle versions?
Yes. The catalogue lists the DAF-221-373-L18 single-needle version and the DAF-221-273-L18 twin-needle version. The appropriate configuration depends on the required seam construction.
3. What feeding system does the DAF-221-L18 use?
The machine uses a compound feed arrangement consisting of bottom feed, needle feed and alternating presser foot feed. This arrangement is designed to help maintain coordinated material feeding when sewing thick or layered materials.
4. What materials can the DAF-221-L18 sew?
The machine is intended for demanding materials including leather, synthetic leather, canvas, coated fabrics, upholstery materials and other heavy-duty sewn products. Suitability should be confirmed through material and sewing tests for the intended application.
5. What is the maximum sewing speed?
According to the supplied catalogue, the maximum sewing speed is 1,200 stitches per minute for the DAF-221-373-L18 and 1,000 stitches per minute for the DAF-221-273-L18. Actual operating speed depends on the material, thread, stitch requirements and machine setup.
6. What are the voltage and power requirements?
The supplied specification lists 220 V, 50/60 Hz and a maximum power consumption of 1 kVA. Please confirm the electrical configuration before ordering.
7. How can I choose between the L18 and L30 versions?
The L18 and L30 designations identify different working-space configurations in your product range. The L30 version is intended for a larger working space. Confirm the actual working clearance and technical dimensions of the selected version before ordering.
8. How can I confirm the right configuration?
Provide your material type, material thickness, workpiece dimensions, required seam type and whether you need single-needle or twin-needle stitching. DAPSEW can help review the required configuration and confirm the relevant technical details.
For assistance with machine configuration, please provide details of your material, workpiece dimensions and intended sewing operation.
Contact DAPSEW for configuration confirmation and a quotation.
