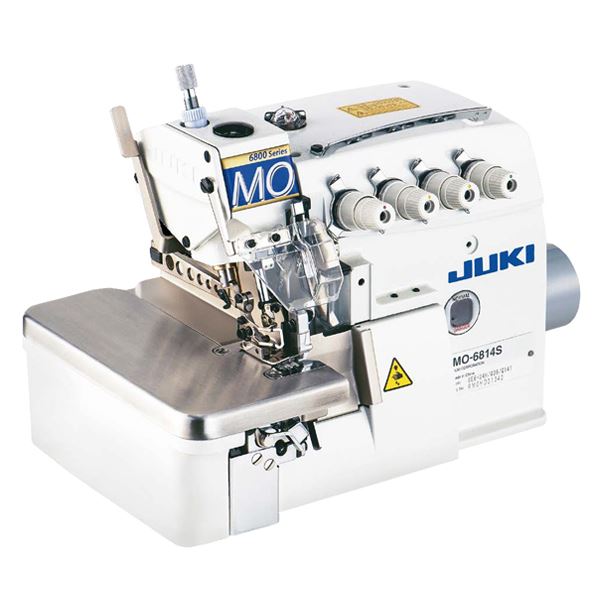

JUKI MO-6814S
1. Machine Name: Juki Overlock Sewing Machine
2. Brand: JUKI
3. Model: MO-6814S
4. MOQ: 10Sets
5. Max.Sewing Speed: 7000sti/min
6. Stitch Length: 0.6-3.8 (4.5)mm
7. Needle Gauge: 2.0mm
8. Overedging Width: 2.0, 3.0, 4.0mm
9. Needle Bar Stroke: 24.5mm (60H:27.0mm)
10. Max. Presser Foot Pressure: 63.7N (6.5kgf)
JUKI MO-6814S overlock sewing machine:
JUKI MO-6814S overlock sewing machine
This advanced overlock / safety stitch machine is easier to use and promises superior cost effectiveness.
The MO-6800S Series responds to various kinds of sewing materials and processes, producing delicate and beautiful soft-to-the-touch seams while further reducing operating noise as well as increasing durability. This advanced overlock / safety stitch machine is easier to use and promises superior cost-effectiveness.
JUKI MO-6814S overlock sewing machine features:
1. JUKI MO-6814S overlock sewing machine achieves beautifully finished seams of improved quality even when run at a high speed
JUKI MO-6814S overlock sewing machine is widely applicable to the sewing of light- to heavy-weight materials. Since the machine is provided with a needle thread take-up mechanism and a looper thread take-up lever, it ensures high-quality, well-tensed and soft seams with a beautiful texture which flexibly correspond to the elasticity of the materials even when run at speeds as high as 7,000 sti/min. In addition, the machine has a wider and brighter needle entry and provides improved responsiveness to the materials, thereby helping the operator use the machine more easily. The optimally-balanced design of the machine reduces both operating noise and vibration, contributing to more comfortable sewing work.
2. JUKI MO-6814S overlock sewing machine is provided with functions which contribute to easier operation

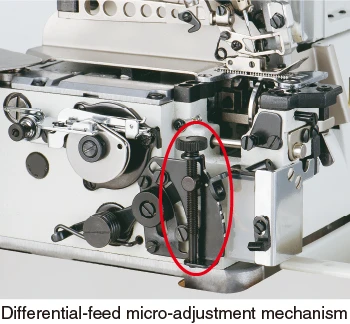

The differential-feed micro-adjustment mechanism, external increasing of the differential feed ratio and the main feed dog height can all be adjustable on the front face of the sewing machine with a screwdriver. The machine is provided as standard with functions which enable easy and best-suited adjustments according to the material to be used.

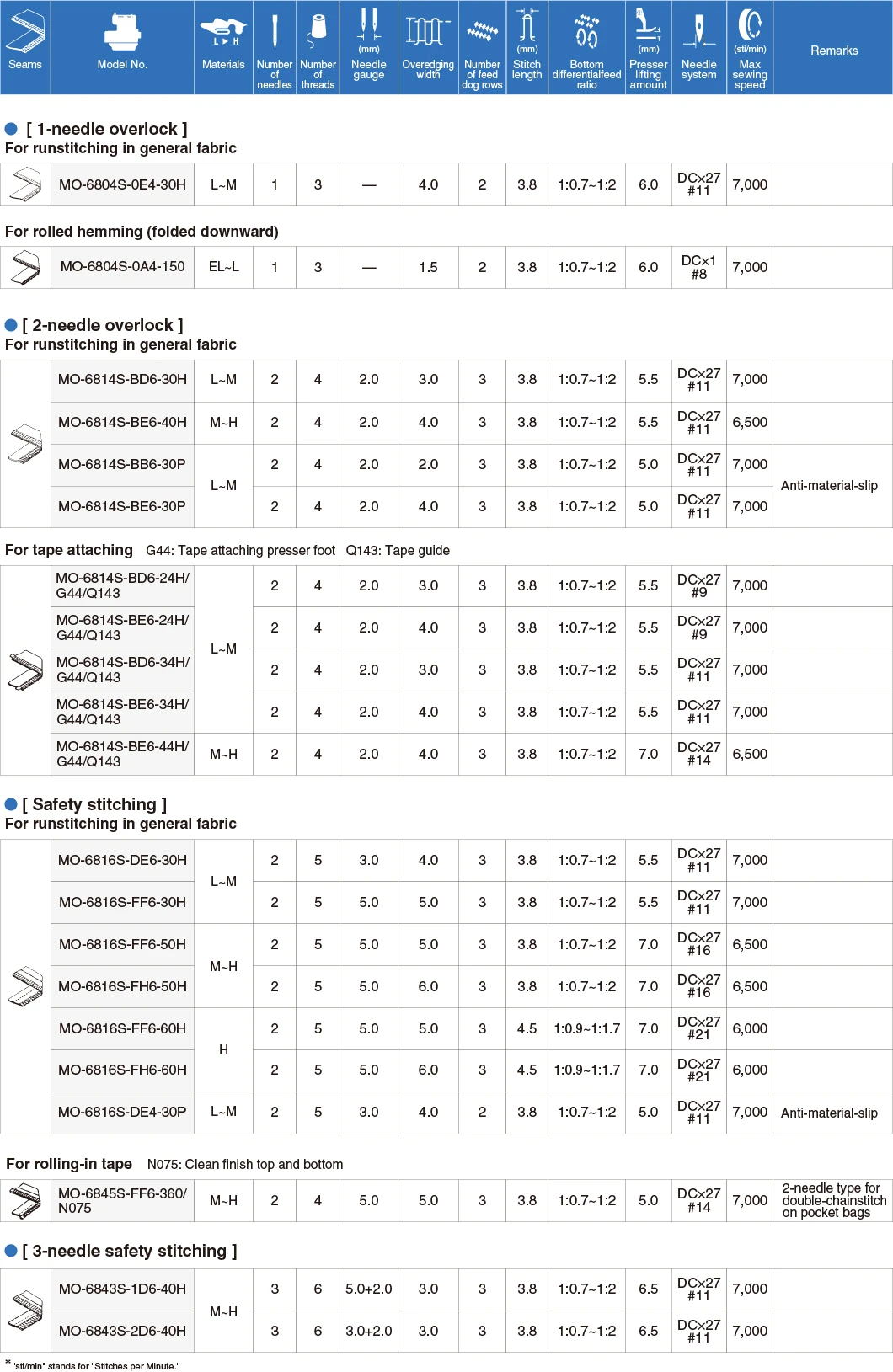

JUKI MO-6814S overlock sewing machine parameters:
|
Model name |
MO-6804S |
MO-6814S |
MO-6816S |
MO-6843S |
|
Stitch type |
1-needle overlock |
2-needle overlock |
Safety stitching |
3-needle safety stitching |
|
Stitch style in the U.S.A. |
504 |
514 |
516 |
- |
|
Max. sewing speed |
7000sti/min |
|||
|
Stitch length |
0.6-3.8 (4.5)mm |
|||
|
Needle gauge |
- |
2.0mm |
3.0, 5.0mm |
3.0+2.0, 5.0+2.0mm |
|
Overedging width |
1.5, 4.0mm |
2.0, 3.0, 4.0mm |
4.0, 5.0, 6.0mm |
3.0mm |
|
Differential feed ratio |
For gathering 1:2 (Max. 1:4), For stretching 1:0.7 (Max. 1:0.6) |
|||
|
Needle bar stroke |
24.5mm (60H:27.0mm) |
|||
|
Inclination angle of the needle |
20° |
|||
|
Needle bar bushing |
Lower bushing method |
|||
|
Needle |
DC×27 (excluding some subclass model) |
|||
|
Max. lift of the presser foot |
7mm (excluding some subclass model) |
|||
|
Max. presser foot pressure |
63.7N (6.5kgf) |
|||
|
Stitch adjusting method |
By push-button |
|||
|
Differential-feed adjusting method |
By lever (with micro-adjustment) |
|||
|
Weight of the machine head |
27kg |
|||
|
Lubrication |
Automatic |
|||
|
Lubricating oil |
JUKI Machine Oil 18 (equivalent to ISO VG18) |
|||
|
Needle cooler |
Provided as standard |
|||
|
Needle thread heat remover |
Provided as standard |
|||
|
Micro-lifter |
Option |
|||
