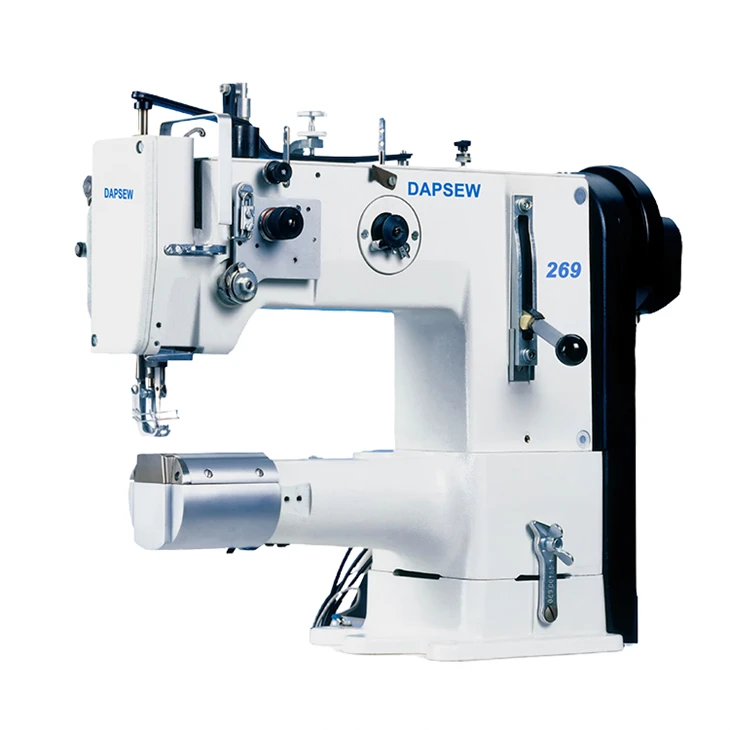

DAPSEW DAP 269 Cylinder Arm Sewing Machine
The DAPSEW DAP 269 Series is a cylinder arm compound feed lockstitch sewing machine available in single-needle and double-needle configurations. Featuring a 76 mm cylinder bed, the machine is designed for bag manufacturing and sewing curved or shaped components. Optional configurations include an integrated direct-drive motor, pneumatic presser foot lifting and pneumatic reverse stitching. The series includes the DAP 269-373 single-needle model and DAP 269-273 double-needle model.
Key Features
76 mm Cylinder Bed: Provides access for sewing curved, tubular and shaped components.
Compound Feed System: Supports controlled feeding during multilayer sewing operations.
Single or Double Needle: Available for different seam requirements.
Optional Direct Drive: Integrated direct-drive motor and control system available.
Optional Pneumatic Functions: Presser foot lifting and reverse stitching.
Large Hook Option: The 269-273B features a 2.5× large hook to reduce bobbin changes.
Available Models
| Model | Configuration |
|---|---|
| DAP 269-373 | Single Needle |
| DAP 269-273 | Double Needle |
| DAP 269-273B | Double Needle with 2.5× Large Hook |
The standard needle gauge for the double-needle model is 6 mm. Optional gauges include 8 mm, 10 mm and 12 mm.
Technical Specifications
| Specification | DAP 269-373 | DAP 269-273 |
|---|---|---|
| Machine Type | Cylinder Arm | Cylinder Arm |
| Needle Configuration | Single Needle | Double Needle |
| Stitch Type | Lockstitch | Lockstitch |
| Feeding System | Compound Feed | Compound Feed |
| Cylinder Diameter | 76 mm | 76 mm |
| Needle System | 134-35 | 134-35 |
| Needle Size | Nm 110–140 | Nm 110–140 |
| Max. Sewing Speed | 2,000 stitches/min | 2,000 stitches/min |
| Max. Stitch Length | 6 mm standard | 6 mm standard |
| Optional Stitch Length | 8 mm | 8 mm |
| Needle Gauge | - | 6 mm standard |
| Optional Needle Gauge | - | 8 / 10 / 12 mm |
| Presser Foot Lift | 6 / 10 mm | 6 / 10 mm |
Specifications depend on the selected configuration and optional equipment.
Typical Applications
Bag manufacturing and assembly
Curved and tubular bag components
Shaped sewing operations
Selected multilayer material assemblies
Optional Configurations
D: Integrated direct-drive motor and control system
8: Optional 8 mm maximum stitch length
AP: Pneumatic presser foot lifting
RAP: Pneumatic reverse stitching and presser foot lifting
Request a Quotation
DAPSEW supplies the DAP 269 Series in single-needle and double-needle configurations with optional equipment.
Please provide your sewing material, required needle configuration, stitch length and destination country for a quotation.
DAP 269 Cylinder Arm Sewing Machine for Bag Manufacturing
The DAPSEW DAP 269 is an industrial cylinder bed sewing machine with compound feed, available in single-needle and double-needle configurations.
Its 76 mm cylinder arm provides access for sewing bags, curved sections and shaped components. Customers can select different needle gauges, stitch lengths and optional pneumatic functions according to their production requirements.
DAPSEW helps customers compare machine configurations and arrange international export supply. Contact us with your sewing requirements for a suitable DAP 269 quotation.
Technical Specifications
| Specification | DAP 269-373 | DAP 269-273 |
|---|---|---|
| Machine Type | Cylinder Arm | Cylinder Arm |
| Needle Configuration | Single Needle | Double Needle |
| Stitch Type | Lockstitch | Lockstitch |
| Feeding System | Compound Feed | Compound Feed |
| Cylinder Diameter | 76 mm | 76 mm |
| Needle System | 134-35 | 134-35 |
| Needle Size | Nm 110–140 | Nm 110–140 |
| Max. Sewing Speed | 2,000 stitches/min | 2,000 stitches/min |
| Max. Stitch Length | 6 mm standard | 6 mm standard |
| Optional Stitch Length | 8 mm | 8 mm |
| Needle Gauge | - | 6 mm standard |
| Optional Needle Gauge | - | 8 / 10 / 12 mm |
| Presser Foot Lift | 6 / 10 mm | 6 / 10 mm |
