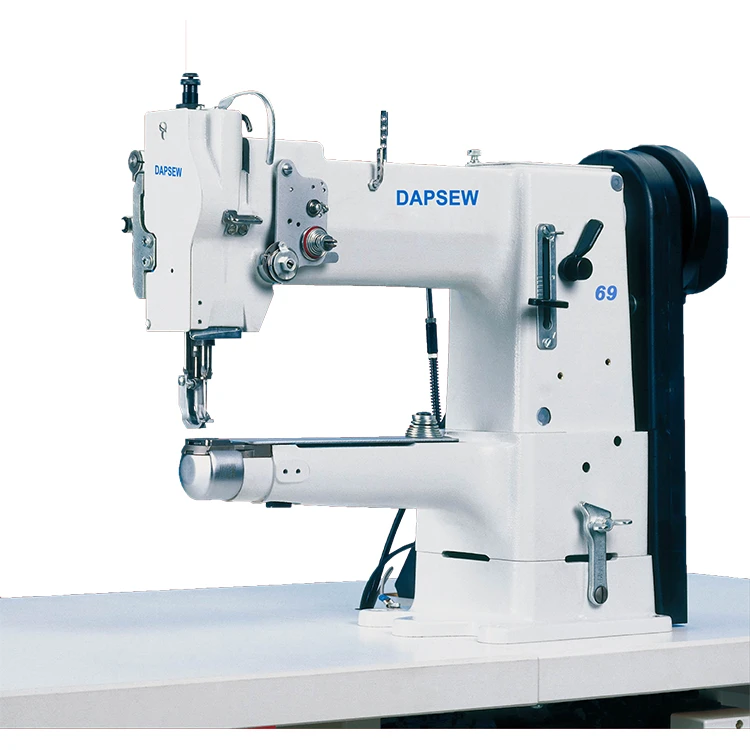

DAPSEW DAP 69-373 Cylinder Arm Sewing Machine
The DAPSEW DAP 69-373 is a single-needle cylinder arm compound feed sewing machine designed for leather belts, bags and shaped sewing components. Featuring a slim 46 mm cylinder bed, the machine provides convenient access to curved and three-dimensional workpieces. Standard E7 sewing equipment is supplied, while E5 binding equipment, E110 sewing equipment and pneumatic functions are available as options.
Key Features
46 mm Cylinder Bed: Suitable for curved, narrow and three-dimensional workpieces.
Compound Feed System: Provides controlled feeding for leather and layered materials.
E7 Standard Equipment: Standard sewing configuration.
Optional E5 Binding Equipment: Available with a moving binder for fabric edge binding.
Optional E110 Equipment: Available with a fabric guide for sewing three-dimensional components.
Optional Automation: Direct-drive control, pneumatic presser foot lifting and pneumatic reverse stitching.
Available Models
| Model | Configuration |
|---|---|
| DAP 69-373 | Standard single-needle cylinder arm configuration |
The exact equipment differences between the two versions should be confirmed when ordering.
Technical Specifications
| Specification | DAP 69-373 |
|---|---|
| Machine Type | Single-Needle Cylinder Arm |
| Feeding System | Compound Feed |
| Cylinder Diameter | 46 mm |
| Needle System | 134 |
| Needle Size | Nm 80–140 |
| Maximum Sewing Speed | 2,000 stitches/min |
| Maximum Stitch Length | 5 mm |
| Alternating Foot Stroke | 4 mm |
| Presser Foot Lift | 6 / 10 mm |
| Net / Gross Weight | 37 / 48 kg |
| Packing Dimensions | 700 × 330 × 720 mm |
Typical Applications
Leather belt sewing
Bag manufacturing and assembly
Curved and shaped leather components
Edge binding with optional E5 equipment
Three-dimensional sewing operations with suitable equipment
Request a Quotation
DAPSEW supplies the DAP 69-373 Series with different sewing equipment and optional functions.
Please provide your sewing material, required sewing operation and destination country for configuration and quotation assistance.
DAP 69-373 Cylinder Arm Sewing Machine for Leather Belts and Bags
The DAPSEW DAP 69-373 is an industrial single-needle cylinder bed sewing machine with compound feed, designed for leather belt production, bag assembly and curved sewing operations.
Its 46 mm cylinder arm allows access to shaped workpieces. Different sewing equipment options are available for standard stitching, edge binding and three-dimensional components.
Contact DAPSEW to discuss material requirements, sewing equipment options and international export supply.
