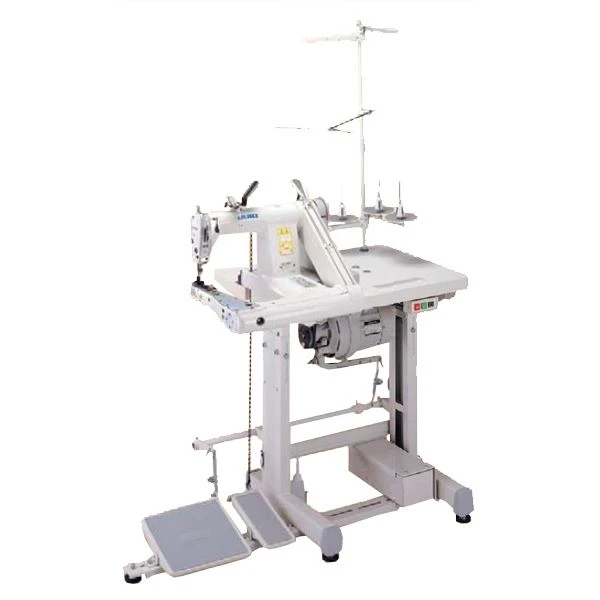

JUKI MS-1190 chain stitch machine
1. Machine Name: Juki Chain Stitch Machine
2. Brand: JUKI
3. Model: MS-1190
4. MOQ: 10Sets
5. Max.Sewing Speed: 4000sti/min
6. Needle Bar Stroke: 28.0mm
7. Needle: SCHMETZ B-64 (Nm100) Nm80~Nm120 ORGAN TV×64-NY (#16)#12-#19
8. Needle Gauge: 3.2mm (1/8"), 4.0mm (5/32"), 4.8mm (3/16"), 5.6mm (7/32"), 6.4mm (1/4")
9. Stitch Length: 1.2-3.2mm
10. Circumference Of Tube At The Needle Entry: 171mm
JUKI MS-1190 chain stitch machine series:
JUKI MS-1190 chain stitch machine achieves beautifully-finished seam while preventing puckering and stitch skipping.
JUKI MS-1190 chain stitch machine parameters:
|
Model |
MS-1190 |
MS-1190M |
|
Application |
For light-weight materials |
For medium-weight materials |
|
No. of needle |
2 |
|
|
Max. sewing speed |
4000sti/min (normal 3,500sti/min) |
|
|
Needle bar stroke |
28.0mm |
|
|
Needle (at the time of delivery) |
SCHMETZ B-64 (Nm80) Nm60-Nm90 |
SCHMETZ B-64 (Nm100) Nm80-Nm120 |
|
Needle gauge |
3.2mm (1/8"), 4.0mm (5/32"), 4.8mm (3/16"), 5.6mm (7/32"), 6.4mm (1/4") |
|
|
Stitch length |
1.2-3.2mm |
|
|
Lift of the presser foot |
10mm |
|
|
Thread take-up lever |
Thread pulling cam type thread take-up lever |
Needle bar thread take-up lever |
|
Circumference of tube at the needle entry |
171mm |
|
|
Needle guard |
Longitudinally-fixed needle guard |
|
|
Stitch adjusting system |
By push-button (with locking mechanism) |
|
|
Lubrication |
Semi-automatic lubrication |
|
|
Lubricating oil |
JUKI New Defrix Oil No.1 (equivalent to ISO VG7) |
|

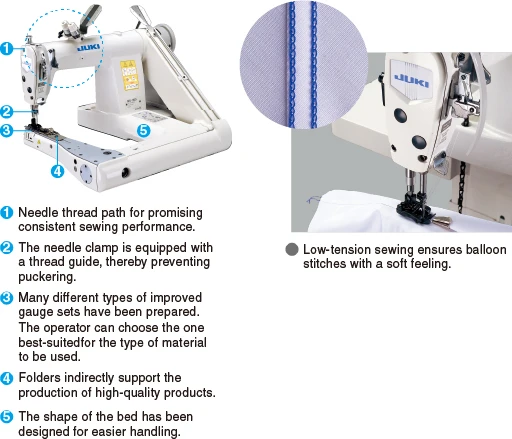

JUKI MS-1190 chain stitch machine features:
1. Low-tension stitching ability and improved stitching mechanism prevents puckering
Both needle thread tension and bobbin thread tension have been decreased after reinvestigation of the double chainstitching mechanism. Furthermore, the stitch dial, gauges and looper have been dramatically improved, thereby forming beautifully finished seams and preventing puckering.
2. JUKI MS-1190 chain stitch machine prevents stitch skipping even when it runs at high speed, ensuring high-quality products
With its low-tension sewing capability and the best-suited timing among the needle, looper and feed, the machine forms even stitches with consistency at all times. The machine also prevents stitch skipping at a high speed to help promote high-grade manufacuring.
3. JUKI MS-1190 chain stitch machine has improved ease of operation
The shape of the bed has been designed to allow the operator to handle it with ease. The push-button type stitch length dial has been introduced to change the feed amount. The timings of the feed driving cam and the looper rocking cam can be separately adjusted. All of these features are designed for easier operation and maintenance.
4. JUKI MS-1190 chain stitch machine is equipped as standard, with newly developed folders which enable the machine to perform stitching with consistency
Newly developed folders are equipped as standard for the machine. The folders are designed to match the presser foot and allow overlapping material to be fed smoothly under them. They are easy to use and improve consistency in sewing. Many different kinds of folders are prepared in accordance with the materials to be used, ranging from folders for extra heavy-weight materials to medium-weight materials.
