MS-1261

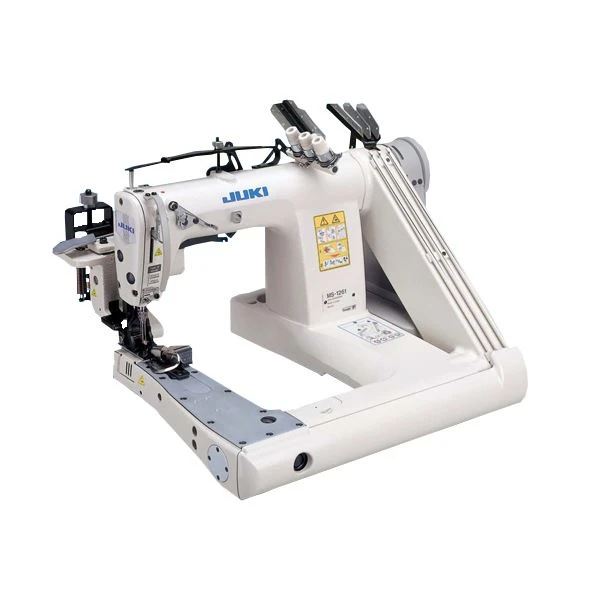

1. Machine Name: Juki Chain Stitch Sewing Machine
2. Brand: JUKI
3. Model: MS-1261
4. MOQ: 10Sets
5. Max.Sewing Speed: 3600sti/min
6. Needle Bar Stroke: 33.2mm
7. No. Of Needle: 3
8. Needle Gauge: 5.6mm (7/32"), 6.4mm (1/4"), 7.2mm (9/32"), 8.0mm (5/16"), 9.6mm (3/8")
9. Stitch Length: 1.4-4.2mm
10. Circumference Of Tube At the Needle Entry: 190mm
JUKI MS-1261 chain stitch sewing machine series:
JUKI MS-1261 chain stitch sewing machine is the leading double chainstitch machine for heavy-weight materials and achieves higher efficiency in operation and higher quality of finished products.
JUKI MS-1261 chain stitch sewing machine parameters:
|
Model |
MS-1261M |
MS-1261 |
|
Application |
For medium- to heavy-weight materials |
For extra heavy-weight materials for jeans |
|
No. of needle |
3 |
|
|
Max. sewing speed |
3600sti/min (normal 3000sti/min) |
|
|
Needle bar stroke |
33.2mm |
|
|
Needle (at the time of delivery) |
SCHMETZ UY128GAS (Nm120) Nm100-Nm140 ORGAN UY×128GAS-NY (#19) #16-#22 |
SCHMETZ UY128GAS (Nm130) Nm100-Nm140 ORGAN UY×128GAS-NY (#21) #16-#22 |
|
Needle gauge |
5.6mm (7/32"), 6.4mm (1/4"), 7.2mm (9/32"), 8.0mm (5/16"), 9.6mm (3/8") |
|
|
Stitch length |
1.4-4.2mm |
|
|
Lift of the presser foot |
10mm |
|
|
Thread take-up lever |
Needle bar thread take-up lever |
|
|
Circumference of tube at the needle entry |
190mm |
|
|
Needle guard |
Backward travelling needle guard |
|
|
Stitch adjusting system |
By push-button (with locking mechanism) |
|
|
Lubrication |
Semi-automatic lubrication |
|
|
Lubricating oil |
JUKI New Defrix Oil No.1 (equivalent to ISO VG7) |
|
JUKI MS-1261 chain stitch sewing machine features:
1. The feed mechanism smoothly feeds the material, thereby allowing the machine to finish seams with consistency
The number of teeth of the feed dog has been increased so that it can easily catch overlapping material. The shape of the presser foot has been modified to prevent single-sided contact with the overlapped part. The movable needle guard (rear) is provided with a vertical adjusting mechanism. These features contribute to smoother feed of heavy-weight materials, thereby preventing stitch skipping.
2. JUKI MS-1361 chain stitch sewing machine prevents uneven material feed
Differences in height between the feed dog and the sole of the presser foot can be appropriately specified and adjusted in accordance with the material thickness. Folders allow the material to be smoothly fed and the cloth puller (optional) has improved fulcrum so that it can run on the material and prevent uneven material feed.
3. JUKI MS-1261 chain stitch sewing machine provides beautifully-finished seams even when heavy-weight material is used
Thanks to the thread guide located between the needle bar thread take-up and the intermediate tension release lever, the timing to tense the needle thread can be changed and the bobbin thread tension can be decreased. As a result, the machine is capable of beautiful finished stitches with a soft appearance even when heavy-weight material is used.
4. The looper tucks the thread without fail, thereby preventing stitch skipping
The placement of the feed mechanism has been charged to decrease the feed amount when the needle enters the material, thus preventing the needle from bending. The bobbin thread is clamped without fail, thereby producing consistent thread loops. The looper tucks the needle thread without fail, thereby finishing uniform seams.
