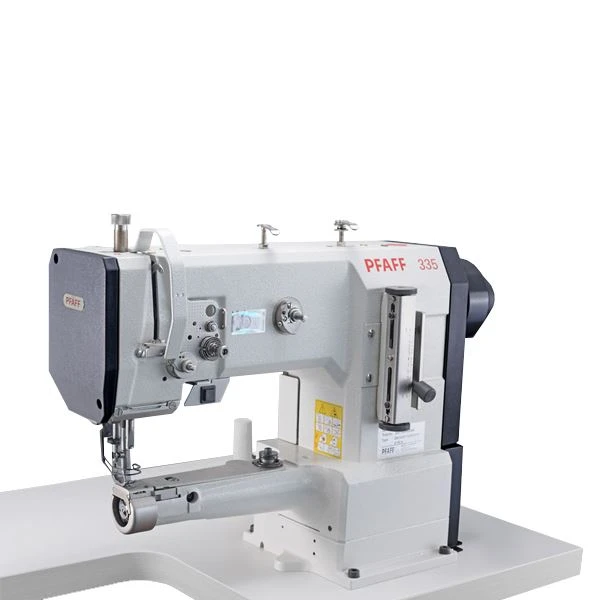

PFAFF 335 Cylinder arm sewing machine
1. Brand: PFAFF
2. Machine type: Cylinder arm sewing machine
3. Model: 335-G-6/01
4. Feeding mechanism: Drop feed, walking foot needle feed.
5. Max sewing speed: 2800spm
6. Stitch type: Lockstitch (301)
7. Max stitch length: 6mm
8. Hook: Large hook
9. Application: Suitable for small leather goods, leather garments, upholstery, shoes, etc.
Products Introduction
Pfaff industral seiwng machine has been regarded as one of the most popular products in the world, DAPSEW has 10 years experience for cooperation with PFAFF company, we sell the original pfaff brand industrial sewing machines to global market.
Pfaff 335 cylinder-arm sewing machines is one of the most classic products of PFAFF company. it is cylinder amr walking foot sewing machine with large hook, The maximum sewing speed of PFAFF 335 cylinder arm sewing machine has reaches 2800rpm, with modern features that make it a popular choice among textile makers and small leather products.
Features:
1. Because of the unison feed system, the pfaff 335 g pfaff cylinder arm uses drop feed, and walking foot needle feed.
2. Excellent sewing quality, performance, and dependability.
3. Exact and consistent stitch setting across a wide range of materials/fabrics.
4. The high top feed lift (7 mm) enables for trouble-free sewing of thick materials as well as simple stitching over cross • seams.
5. Because of the high fabric clearance of 14 mm, loading, and unloading is simple, even of bulky material.
6.9 mm from the front edge of the cylinder arm to the needle - 51 mm cylinder arm diameter
7. Using the built-in bobbin winder.
8. Because the moving binder and tape are held near the binding edge, 335-G-17/01-650/03 can be fitted with binding parts suited for binding, even inside and outside curves.
9. Pfaff Industrial 335 uses the 1.4 times large shuttle hook for fewer bobbin changes.
10. Rugged and durable machine construction - Easy to maintain.
Parameters:
|
Model |
335 |
|
Max. top feed stroke |
7mm |
|
Clearance under sewing foot |
14mm |
|
Max.stitch length |
6mm |
|
Max. sewing speed |
2800rpm |
|
Hook |
Large hook |
|
Needle system |
134-35 |
|
Balance wheel |
80mm |
|
Needle size in No |
80-100 |
|
Working space |
265x115mm |
|
Motor power |
370w/550w |
|
G.W./N.W. |
54/49kgs |
|
Dimensions |
770x380x720mm |
Different Models' Application

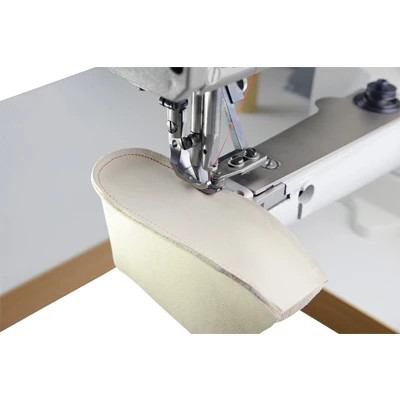

The PFAFF 335 cylinder arm sewing machine is used for stitching tubular or pre-attached objects, small leather goods, leather garments, upholstery, shoes, and other similar items.
●335-G-6/01 is for standard sewing work on leather wear, bags, and leather craft articles
●335-G-17/01-650/03 suitable for binding of shoes and leather wear with leather-, imitation leather- or textile tape
●Piping work on bags, suitcases, and upholstery
|
Model |
Destination |
Max. speed |
Needle |
|
335-G-17/01-650/03 BLN |
Per binding |
2.800rpm |
134-35LR |
|
335-G-17/01-900/925 |
For binding with a thread trimmer |
2.800rpm |
134-35LR |
|
335-G-6/01 BLN |
For general seaming |
2.800rpm |
134-35LR |
|
335-G-6/01-900/52-911/97-925/03 BL |
For general seaming with thread trimmer, bartack, and pressure foot lift |
2.800rpm |
134-35LR |
|
335-G-6/01-910/911 BLN |
For general seaming with pressure foot lift and bartack |
2.800rpm |
134-35LR |
Why choose us?
1. Cooperating Brand
We entered the industrial sewing machine business in the 1990s and have long-standing business relationships with top sewing machines brand, including Juki, Pfaff, Durkopp Adler, Mauser, Pegasus, Singer, SIRUBA, and Kingtex. Choosing us means selecting a well-known brand, ranging from a reputation for quality, dependability, innovation, and brand recognition, to customer service.
2. Installation, Debugging, Packing, Shipping
To ensure that our machines are delivered in top packing, we take great care in preparing them for shipping. it includes skillful handling and packing, as well as competent installation and debugging. Finally, to give our clients peace of mind that they are obtaining the best sewing machines possible, we make sure that every one of our items is carefully examined and tested before being sent to customers.
3. DAPSEW Supplies Other Pfaff Sewing Machine
