JUKI DDL-9000C-FMS

JUKI DDL-9000C-FMS single needle sewing machine:

JUKI DDL-9000C-FMS single needle sewing machine features:



1. The machine eliminates the "bird's nest" at the starting of sewing

JUKI DDL-9000C-FMS single needle machine starts sewing with the needle thread clamped and held with its unique air & ball type clamp. High-quality seams, thereby, are promised without leaving bird's nests (thread tangling) on the wrong side of the material.



JUKI DDL-9000C single needle sewing machine adopts a new thread trimming method where the newly-developed thread trimming mechanism trims the thread directly below the throat plate while the last stitch (or two stitches) at the end of sewing is (are) sewn with a smaller stitch length using condensation stitching.

As a result, the length of thread remaining on the material is shortened, thereby eliminating thread nipping work.

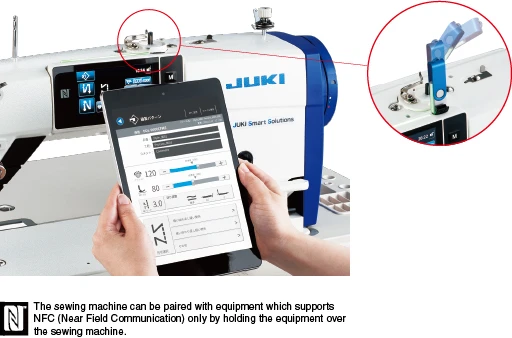

Data on sewing machine adjustments made according to the product to be sewn can be transferred to a commercially-available Android tablet in contactless mode. This enables quick check for uniform settings as well as confirmation of conditions of sewing machines in a sewing line, thereby facilitating setup changes.

The operation panel is also provided as standard with a USB port.

Data management and software update can be carried out with ease using a USB thumb drive.

Data items of sewing can be numerically managed to ensure "stable quality" and "reduction in time required for setup changes". Quantified sewing data can be externally taken from the sewing machine using an Android tablet or USB thumb drive.



JUKI DDL-9000C-FMS single needle sewing machine has adopted the thread clamping system that pneumatically draws the needle thread which remains after thread trimming and clamps it with the ball. As a result, the needle thread is clamped without fail while requiring no additional adjustment even when the type and count of thread is changed.

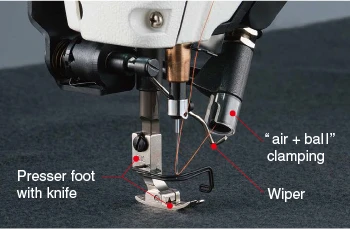

JUKI's unique "air + ball" clamping system

Not only the reliable thread clamping mechanism but also downsized needle-surrounding portion of the machine head are achieved by the thread clamp mechanism that combines the air cylinder with the ball. Due to its strong thread clamping force, the needle thread can also be trimmed without fail.



The thread clamp device and the wiper are located as far as possible from the needle entry area. This simple arrangement of the area around the presser foot allows the operator to handle the material with ease and ensures smooth operation.

This sewing machine can also be used as the standard sewing machine provided with the thread trimmer

For sewing processes that do not require the "bird's nest preventing function", the sewing machine can be used as the standard sewing machine with the thread trimmer by disabling the air cylinder through the operation panel.



The operator carries out fine adjustment of correction sewing (within the stitch length of 1 pitch) using the reverse feed lever, thereby achieving "further improved seam quality".



The LED light illuminates the needle entry area in the just-under direction from the right and left sides of the needle bar. In comparison with the single-direction illumination, this LED light helps the operator carry out sewing more easily.
Illuminance of the LED light is adjustable in five levels. It can also be used as an auxiliary lamp for working.
