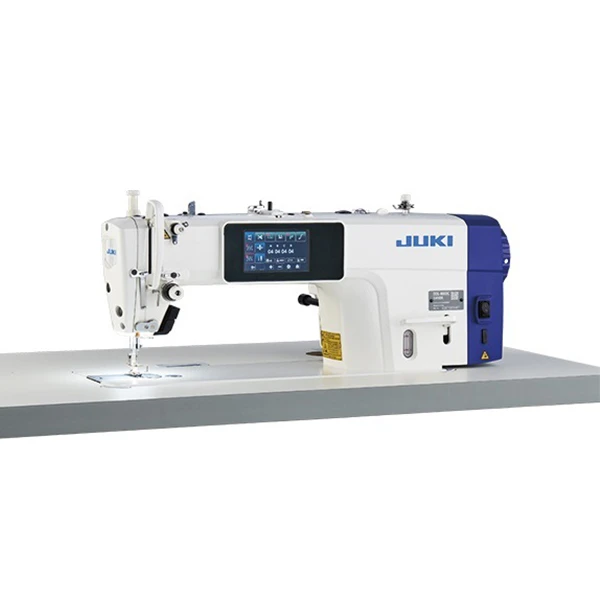

JUKI DDL-8000C Single Needle Lockstitch Machine
1. Machine Name: Juki Sigle Needle Lockstitch Machine
2. Brand: JUKI
3. Model: DDL8000CSM
4. MOQ: 10Sets
5. Max.Sewing Speed: 5000sti/min
6.Specification:Standard type
7. Max. Stitch Length: 5mm
8. Application: Medium-weight
9. Power Requirement: Shingle-phase 220V-240V
10. Lubricating Oil: JUKI CORPORATION GENUINE OIL 7 (equivalent to ISO VG7)
JUKI DDL-8000C single needle lockstitch machine Series:
JUKI DDL-8000C single-needle lockstitch machine valued for its advanced technology, efficiency, and ease of use, making it ideal for a range of fabrics in garment production. It features an energy-saving direct-drive motor that reduces power consumption, noise, and vibration, enhancing operator comfort and production efficiency. With a digital control panel, the DDL-8000C allows for quick adjustments to stitch length, speed, and thread tension, delivering high-quality, precise stitching on light to medium-weight materials. JUKI's Active Thread Control (ATC) system automatically adjusts tension for different fabrics, ensuring consistent stitch quality. It also includes automatic thread trimming and presser foot lifting, streamlining operations and reducing manual tasks. Built with a durable frame, the DDL-8000C is designed to withstand high-volume production, making it an excellent choice for businesses needing a cost-effective, high-performance sewing solution.
JUKI DDL-8000C single needle lockstitch machine features:
1.EFLeCS with various functions
Electric Feed Length Control System (EFLeCS) with a digital pitch

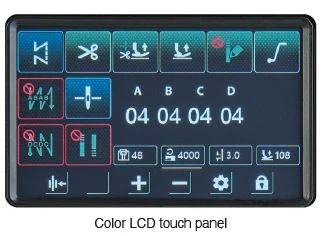

With the stepping motor used to control the feed mechanism, the feed pitch is adjusted with the color LCD touch panel control.
The high-clarity display of the touch panel promises excellent visibility to enhance workability.
Reverse feed length setting and condensed stitch are possible.
The machine is also able to sew design stitch.

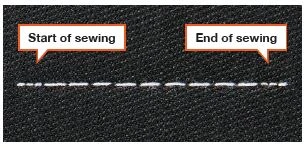

Condensed stitch
The condensed stitch can be set from the panel to fine-tune the stitch length at the end of a seam to prevent the seam from unraveling.

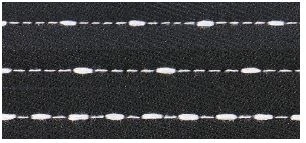

Design stitch
Digitalized needle feed mechanism enables sewing of many different sewing patterns with ease.

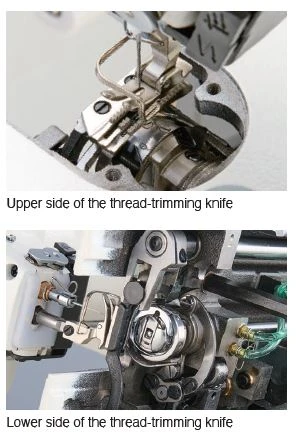

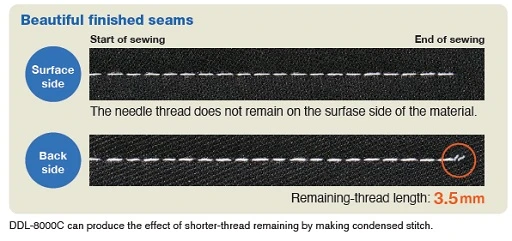

2.The shorter-thread trimming mechanism
The length of thread remaining on the material at the end of sewing is 3.5 mm
The machine adopts a double-blade drive rotary thread-trimming mechanism.
By trimming thread just under the needle and by using digital pitch condensed stitching, this thread-trimming system consistently leaves no more than 3.5 mm of remnant thread on the material at sewing completion.

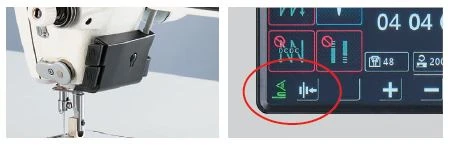

3.Feed-amount fine-adjustment function
Stitch length can be controlled sensibly with reverse feed lever equipped as standard.
The machine newly has a choice of stitch length adjustment function by knee lifter.
This function makes possible to adjust stitch length without using hands, so it helps difficult processes which require handling by both hands.
4.One-touch change over function
The stitch length and maximum sewing speed can be changed over with one-touch action of the hand switch.
5.Control box & USB port
The control box is integrated with the machine head to facilitate machine setup, and now comes with a USB port for charging.
Since the USB port is provided as standard for the control box.
6.Oil Shielding System
In order to prevent oil stains on sewing products, the sewing machine has adopted the "Oil Shielding System" which is integrated into the sewing machine bed.
The needle bar is lubricated with a smaller quantity of oil as compared with the conventional model. In addition, oil which externally splashes is shielded by the frame oil recovery mechanism and automatic oil circulation mechanism.
This structure contributes to the achievement of the maximum sewing speed of 5,000sti/min and also to increased productivity.

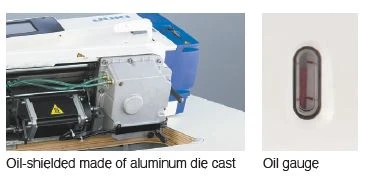

7.Elimination of oil stains on sewing products
Oil is stored in the oil-shielded made of highly rigid aluminum die cast which is integrated into the machine head and provides increased cooling performance.
The oil-shielded has increased sealing performance as compared with a plastic oil tank and effectively prevents oil leakage and tank breakage.
8.Stepping motor drive for the thread trimmer and auto-lifter
The drive mechanism for the thread trimmer and presser lifter uses a single stepping motor.
The mechanism substantially reduces operating noise, especially for the thread trimmer.
9.Auto-lift and knee lifter
Shared motor power with the thread trimmer now makes it possible to provide the auto-lifter as standard.
A highly demanded knee-lifter is also provided as standard for further enhanced workability.

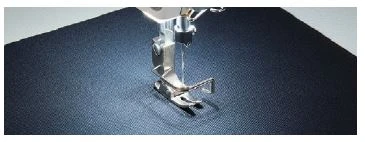

10.Nipper device
This device pulls the needle thread into the wrong side of the material at the beginning of sewing, thereby ensuring more beautifully-finished seams.
11.Hand switches
Two customizable hand switches are provided as standard.
The assignable button functions include back-tack stitch, needle up/down stitch, one-stitch sewing, condensation stitch, etc.
12.LED light
Since the LED lights cast their light exactly downward to illuminate the needle entry area from the right and left sides of the needle bar, sewing work can be carried out more easily as compared with the use of light from one direction. In addition, the illuminance of the LED lights can be adjusted in three steps and can be used as an auxiliary light for work.
JUKI DDL-8000C single needle lockstitch Mahcine Parameters:
|

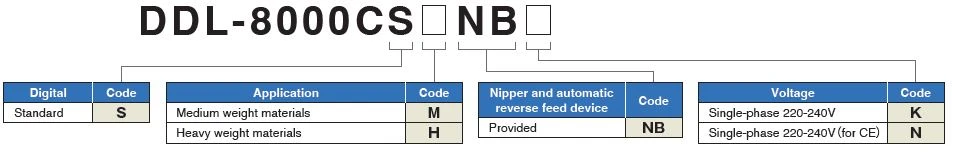

Model |
DDL8000CSM |
DDL8000CSH |
|
Application |
Medium-weight |
Heavy weight |
|
Lubrication |
Oil Shielding System |
|
|
Max. sewing speed |
5,000sti/min |
4,000sti/min |
|
Max. stitch length |
5mm (7mm*2) |
|
|
Needle bar stroke |
30.7mm |
36mm |
|
Lift of the presser foot |
Automatic: 9mm / Lever: 13mm |
|
|
Needle |
DB*1 #14 |
DP*5 #21 |
|
Lubricating oil |
JUKI CORPORATION GENUINE OIL 7 (equivalent to ISO VG7) |
|
|
Power requirement |
Shingle-phase 220V~240V |
|
|
Weight of machine head |
42.0kg (include motor, control box, panel) |
|
