JUKI LH-3528A double needle lockstitch machine

JUKI LH-3528A double needle lockstitch machine series:



JUKI LH-3528A double needle lockstitch machine series has made further progress. This is the cutting-edge model 2-needle sewing machine which comes with substantially enhanced mechanisms such as the direct-drive mechanism, semi-dry head, new thread tension control mechanism and improved oiling system.







All models of the LH-3500A Series are provided with a semi-dry head to eliminate staining with oil from the frame (the needle bar part).

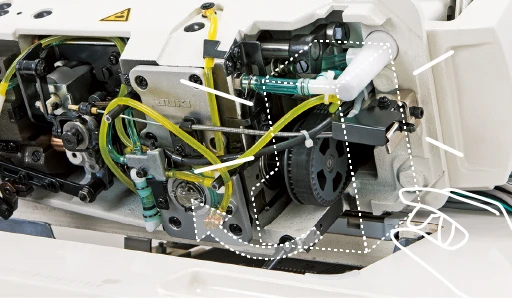

The location of the oil tank has been changed to the inside of the sewing machine through our re-investigation of the lubricating method. As a result, space is secured under the bed surface to facilitate changeover of the feed method between the "needle feed" and "bottom feed" and changeover of the feed timing (re-placement of the timing belt).



For the process of sewing light-weight materials or the like, puckering has to be prevented. In this case, the feed method can be changed over to the bottom feed through an easy adjustment and change of the gauge. In comparison with the needle feed, the bottom feed works to prevent puckering and enables sewing with a lower thread tension.



From a wide variety of models, the best-suited model can be chosen according to your sewing items, ranging from light- to heavy-weight materials.



The operation panels CP-18A and CP-180A are provided with a production support function

The production support function actually consists of three different functions (six different modes), which are the output control function, operation measuring function and bobbin counter function. Each with its own production support effect. An appropriate function (mode) can be selected as required.

The parameter setting can be done on the panel located on the top of the sewing machine, thereby helping reduce operator fatigue during setup changing.



Two different types of thread tension controllers have been developed

The needle tension controller comes in two different mechanisms according to the type of sewing machine. For the A and F types, seam quality free from puckering and irregular stitches is promised. For the S and G types, the sewing range has been broadened to produce well-tensed seams even when thick thread is used.

Wire type and round-hole type needle bar thread guide

Two different kinds of needle bar thread guides (needle clamps), the wire type and round-hole type, have been developed according to the type of sewing machine. The wire-type needle bar thread guide has been adopted for the A and F types which require the sewing capability to sew light-weight materials and foundations without puckering or irregular stitches. The round-hole type needle bar thread guide has been adopted for the S and G types which sew materials requiring well-tensed seams. In addition, the G type is provided as standard with the presser foot with guide which is effective for the topstitching process.



Our direct-acting thread trimmer mechanism, which spreads thread without fail, has been further improved. The thread trimmer trims the needle thread and bobbin thread without fail even when thick thread is used. In addition, the thread trimmer's bobbin thread retaining force has been increased.



The presser foot can be lifted by a minute amount by adjusting the eccentric pin located in the presser lifter lever section.

When sewing shaggy and elastic fabrics, the load applied to the material is reduced by slightly lifting the presser foot. Materials are handled more easily and are finished without sacrificing the inherent texture of the material.



ECO-oli method (circulation type)

The oil dropped from the hook and its surrounding sections into the under-cover is filtered to remove dirt and dust and is then returned to the oil tank. This method saves the effort of oiling and reduces oil consumption.

Clean oil method

The oil dropped from the hook and its surrounding sections into the under-cover is not returned to the oil tank, but only clean oil is supplied to the hook at all times.

★The oiling method can be changed over as desired.





Model	LH-3528A-A	LH-3528A-F	LH-3528A-S	LH-3528A-G
Application	Light-weight	Foundation	Medium-weight	Jeans and heavy-weight
Organized split needle bar mechanism	Not provided
Hook	Vertical axis regular hook
Lubrication	Semi-dry / hook section: minute-quantity lubrication (tank system)
Max. sewing speed	3000sti/min
Distance from needle to machine arm	120×266×87mm (height of jaw part)
Feed system	Changeover between the needle feed and bottom feed
Max. stitch length	5mm	4mm	5mm
Needle bar stroke	33.4mm
Thread take-up	Slide type
Tensioner	Independent right and left needles type (lockstitch type)		Standard type
Thread winder	Built-in the machine head
Lift of the presser foot	7mm (by hand), 13mm (by knee)
Oiling method	Eco-oil method (circulation type), Clean oil method
Tank capacity	280cm³
Lubricating oil	JUKI New Defrix Oil No.1 (equivalent to ISO VG7)
Needle	DP×5 (#9) #9-#16	DP×5 (#10) #9-#16	DP×5 (#14) #9~#16	DP×5 (#21) #16~#23
Outside dimensions of package (mm)	LH-3528A: 718×341×744mm/ LH-3528A-7: 768×341×744mm
Machine head weight (including the package)	LH-3528A: 48kg / LH-3528A-7: 61kg (with AK: 63kg) / LH-3528A-F-0B: 50kg (with AK: 63kg)
