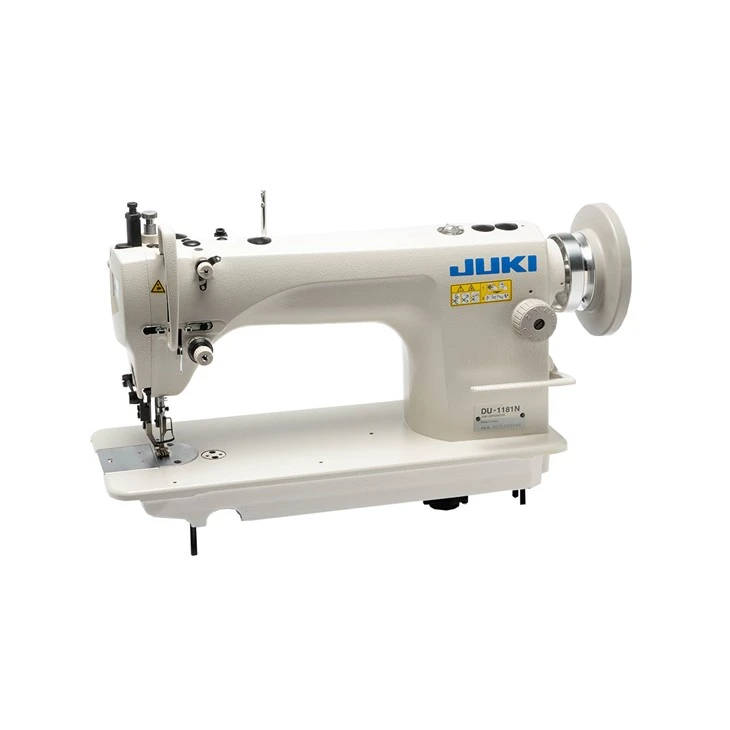

JUKI DU-1181N Walking Foot Industrial Sewing Machine

JUKI DU-1181N walking foot industrial sewing machine with its powerful top and bottom feed mechanism, the machine smoothly feeds a difficult-to-feed material or a multi-layered part of material without pitch errors, achieving consistent seam quality.

JUKI DU-1181N is a high-performance single-needle sewing machine designed for industrial applications, featuring both top and bottom feed mechanisms. This makes it ideal for handling heavy or multi-layered fabrics such as denim, leather, and canvas. Its robust construction is particularly well-suited for upholstery work, garment manufacturing, and the production of durable items like bags and accessories. The top and bottom feed system ensures even stitching and precise handling of fabrics, reducing issues with shifting or puckering, making it a versatile and reliable choice for a wide range of sewing needs.

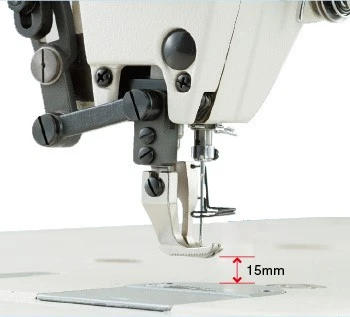

The lift of the presser foot, by the knee lifter, is as high as 15 mm so as to support processes which require a higher lift of the presser foot, such as piping and tape-attaching.

With its stitch length being as large as 9 mm, the machine is applicable to a broader range of sewing processes.

The machine comes with a horizontal-axis double-capacity hook, not only to decrease the frequency of bobbin thread changing, but also to enable sewing work with increased efficiency.

A pump-unit type automatic lubricating mechanism dramatically improves maintainability. The oil amount in the face plate and hook is adjustable.

The top feed mechanism employs a grease tank and oil wick lubrication mechanism.

The machine head is designed to achieve optimum balance, thereby reducing vibration and noise. The machine affords the operator a comfortable working environment.

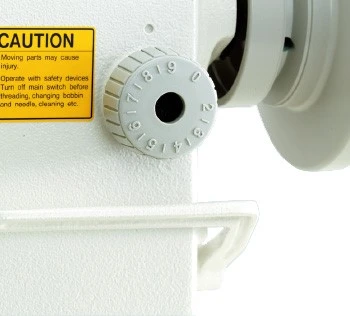

The stitch pitch can be adjusted in both the normal and reverse directions.

The height and inclination of the feed dog can be adjusted.

The amount of the alternating vertical movement of the walking foot and presser foot is adjustable in a range from 2 to 5mm according to the height of a multi-layered section of material.

The horizontal feed cam, top and bottom feed cam and top feed cam can be adjusted after openning the rubber caps (three caps) on top of the machine head.
